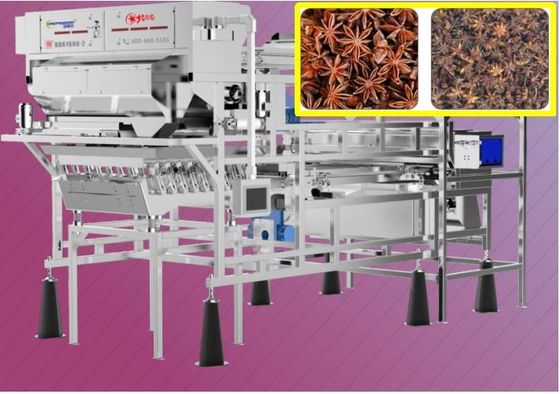

Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software
1 set
Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

2 Layers Anise Color Sorter


400Kg/h Anise Color Sorter

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
HS CODE: 84371010
Structure: Belt-type
Layers Number: 2
Voltage(V/Hz): 220/50
Touch Screen: Advantech
Power Supply: MeanWell Brand
Software: Microsoft
Warranty: 1 Year
Product Description

Intelligent Removal Spices Anise Sorting Machine Processing Equipment

Advantages Of Coreprogram :
1. Efficient Double-layer For Second-selection, Single Layer is Optional.
   We provide slow and fast series, infrared series, four-view series single and
   double layer color sorters to meet the needs of customers at different levels.
2. Match Customers Demands
     For special materials such as large volume, irregular, easily broken, high humidity,
     strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent Cleaning Design
    One lens with one brush, and multiple dust removal devices, blow dust to remove
    floating light objects without contact, reduce the interference of dust on the lens
    capture,and improve the accuracy of recognition.

Technical Parameters:

Model Layers Number Voltage
Sorting Accuracy(%) Capacity
BDX640-1 1 220/50 2.9 >99.9% 100-150 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 150-200 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 200-400 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 300-500 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 400-600 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 400-600 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 500-700 >10:1 3830x3840x2530 3765

Note: The above parameters take green pepper with 5% impurities ratio as an example .
          Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.

Working Schematic:

    Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software 0


Sorting Case:

                                          Example Of Anise Sorting

       Microsoft Software Anise Color Sorter 2 Layers 400Kg/H 1 Year Software 1

                             Accepted Anise                                                      Rejected Anise

Packaging & shipping :
Delivery Time:15 working days after payment.
Packaging: dedicated wooden box.

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
