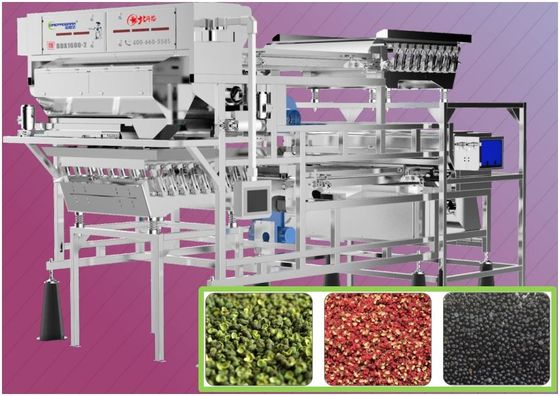

Remote Control Spices Color Sorter Intelligent Interconnection 8.2kw 2765kg 220V
1 set
Remote Control Spices Color Sorter Intelligent Interconnection 8.2kw 2765kg 220V
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

8.2kw Spices Color Sorter


2765kg Spices Color Sorter


220V Spices Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Structure: Belt Type
Layers Number: 2
Weight(Kg): 2765
Size(mm): 5300*3750*3200
Filter: SMC
Touch Screen: Advantech
Power Supply: MeanWell Brand
Software: Microsoft
Product Description

 Remote Control Intelligent Interconnection Spices Pepper Sorting Machine

Main Features :

1. Efficient Double-layer For Second-selection
    We provide slow and fast series, infrared series, four-view series single and double layer
    color sorters to meet the needs of customers at different levels.
2. Meet Customer Demands
    Have excellent performance for special materials such as large volume, irregular, easily
    broken, high humidity,strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent Cleaning Design
   One lens with one brush, and multiple dust removal devices, blow dust to remove floating
   light objects without contact, reduce the interference of dust on the lens capture, and
   improve the accuracy of recognition.

Technical Parameters:

Model Layers Number Voltage
Sorting Accuracy(%) Capacity
BDX640-1 1 220/50 2.9 >99.9% 100-150 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 150-200 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 200-400 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 300-500 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 400-600 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 400-600 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 500-700 >10:1 3830x3840x2530 3765

Note: The above parameters take green pepper with 5% impurities ratio as an example .
          Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.

Working Schematic:

    Remote Control Spices Color Sorter Intelligent Interconnection 8.2kw 2765kg 220V 0

Sorting Case:

                           Example Of Pepper Sorting

         Remote Control Spices Color Sorter Intelligent Interconnection 8.2kw 2765kg 220V 1

           Green Pepper                   Red Pepper                      Black Pepper

      Remote Control Spices Color Sorter Intelligent Interconnection 8.2kw 2765kg 220V 2

              Pepper Seeds                  Raw Materials              Rejected Materials

Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box


1. How about after-sale services overseas?
    After-sale services are available to overseas customers. Internet + mobile app, making
    the operation and maintenance more convenient and easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to assist
    with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material, the
    good material (which is you want to accept) ,bad material (which is you want to reject).
    We send the sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
     purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.

8. What's the capacity ?
    The capacity above is a little different due to different impurities ratio .We generally
     provide a capacity range.

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available
• Technician guide at the site.
• 24 Hrs online service.
