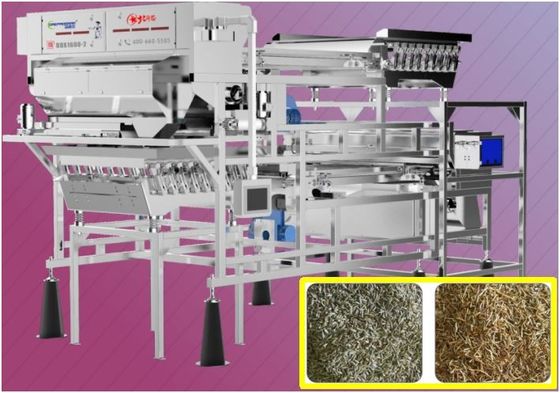

High Accuracy Reliable Quality Spices Cumin Sorting Machine Color Sorter
Advantages Of Coreprogram :
1. Measures are taken for splashing granules in the product streams, and the product provides
the most efficient and stable flow.
2. The fourth-generation FPGA processor technology provides excellent processing speed and
massive data efficiency.
3. Faster and easier to use with new touch panel and software .
4. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
with top dust extraction equipment.
5. The automatic background adjustment function, open frame and special unloading system
facilitates make it easy for installation, operation and general maintenance of the machine.
6. The model is equipped with a new generation of lenses and camera. It captures the HD
images for high accuracy and has high level ability to detect the defects.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) | Power (Kw) | Sorting Accuracy(%) | Capacity (Kg/h) | Carryover Ratio | Dimension(mm) (L*W*H) | Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 100-150 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 150-200 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 200-400 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 300-500 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 400-600 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 400-600 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 500-700 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take green pepper with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case:
Example Of Cumin Sorting
Accepted Cumin Rejected Cumin
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
