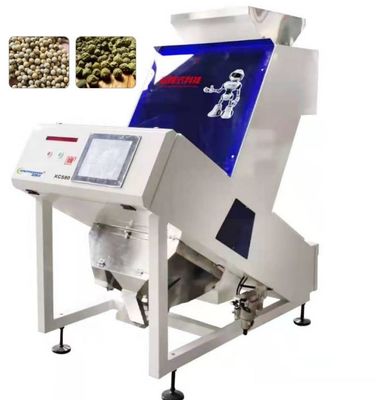

1 Chute Multi-function Spices Black White Pepper Color Sorter Sorting Machine
Product Superiority :
1. Coreprogram Color Sorter is committed to developing advanced core technology ,We provide
you with quality machines and excellent services.
2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet
fine classification requirements and get good shape selection and color selection.
3. Online Engineering service is always available while providing installation and after-sale service
locally in all countries.
4. Intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption
and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system.
ensures low maintenance cost and long lifetime over 15 billion times.
Technical Parameters:
| Model | Capacity (Kg/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 100-150 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 300-700 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 400-800 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 500-900 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 600-1000 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 700-1200 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 800-1300 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .
Sorting Case :
Example Of Pepper Sorting
Raw Material Rejected Material White Pepper
Green Pepper Red Pepper Black Pepper
