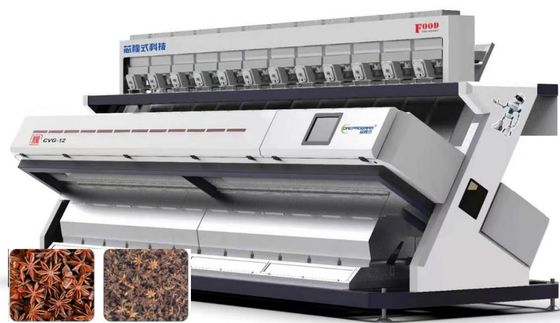

12 Chute Industrial Color Sorter Machine Waterfall Structure 800-1300Kg/h
1 set
12 Chute Industrial Color Sorter Machine Waterfall Structure 800-1300Kg/h
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVG-12
High Light:

12 Chute Industrial Color Sorter


Waterfall Industrial Color Sorter


1300Kg/H Industrial Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Structure: Waterfall
HS CODE: 84371010
Power(Kw): 8.3
Dimension(mm): 4993*2077*1795
Weight(kg): 2960
Lens: Phoenix
Power Supply: MeanWell
Software: Microsoft
Product Description

12 Chute High Capacity Anise Cumin Spices Sorting Machine Processing Line

Main Features:
Remote Interconnection System
Remotely diagnoses sorting machine and assist with equipment operation are available after obtaining customers’ authorization.
Precise Target Technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD camera and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover ratio a lot.
High-quality Customized Valves
With high frequency and strong power, they can accurately blow off some high density materials like minerals, quartz and many kinds of stones.

Technical Parameters:

Model Capacity
Optimized Carryover
Sorting Accuracy





XCS80 100-150 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 300-700 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 400-800 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 500-900 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 600-1000 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 700-1200 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 800-1300 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
         will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

12 Chute Industrial Color Sorter Machine Waterfall Structure 800-1300Kg/h 0

    From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole  . The accepted materials will come out from the accepted hole .

Sorting Case :
                                           Example of Anise And Cumin Sorting
12 Chute Industrial Color Sorter Machine Waterfall Structure 800-1300Kg/h 1
    Accepted Cumin            Rejected Cumin               Accepted Anise                 Rejected Anise

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
