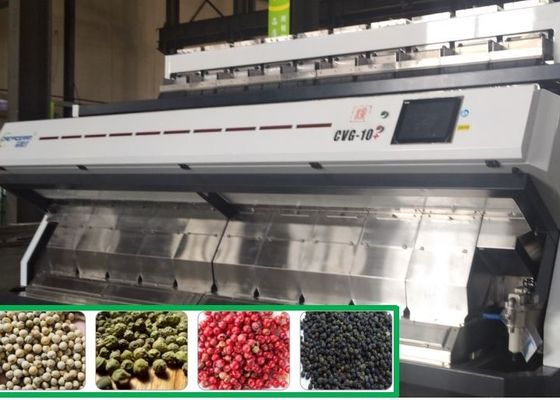

10 Chute Spices Color Sorter for White and Red and Black Green Peppers
Product Superiority :
1. Brand new photoelectric design LED light source, More energy-saving, low heat.
2. The light source and the sorting box are set independently to reduce the interference of
dust on the material sorting .
3. Unique bottom exhaust dust removal system, excellent dust removal effect, stable performance
in dusty environment .
4. Easy to learn and operate .
5. Simple optical system design, precise automatic calibration system , well-designed
man-machine interface .
6 .Coreprogram Color Sorting machine provides customized designed color sorter
machine according to the demands of the end-users.
7. Logo , color , size can be customized.
Technical Parameters:
| Model | Capacity (Kg/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 100-150 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 300-700 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 400-800 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 500-900 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 600-1000 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 700-1200 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 800-1300 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole .
