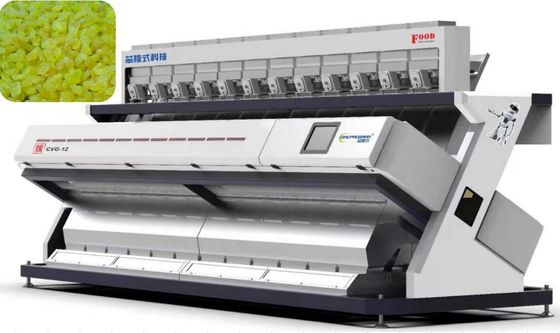

High Output Full Color CCD Camera Raisin Color Sorter Sorting Equipment
Main Features:
1. Super Computing
The fifth-generation FPGA chip has greatly improved the calculation speed and the amount of
calculation data, and can easily realize the ultra-high-speed real-time calculation of massive data.
2. Anti-fragmentation
High-frequency solenoid valve, equipped with targeted positioning, flexible rejection, soft touch
and other modules to protect all materials.
3. Parallel Processing
The synchronization recognition algorithm of color selection, shape selection, quality selection,
can accurately identify each kind of material, the recognition accuracy is higher, and the
recognition range is wider.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3.5-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
