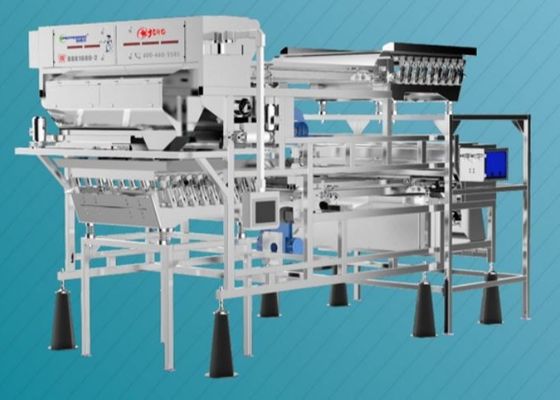

Soft Landing Lower Damage Frozen Bean Vegetable Sorting Machine
Advantages Of Coreprogram :
1. Efficient double-layer For Second-selection, Single Layer is Optional.
We provide slow and fast series, infrared series, four-view series single and
double layer color sorters to meet the needs of customers at different levels.
2. Meet Customer Demands
For special materials such as large volume, irregular, easily broken, high humidity,
strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent Cleaning Design
One lens with one brush, and multiple dust removal devices, blow dust to remove
floatinglight objects without contact, reduce the interference of dust on the lens capture,
and improve the accuracy of recognition.
4. Super Computing
The fifth-generation FPGA chip has greatly improved the calculation speed and the amount
of calculation data, and can easily realize the ultra-high-speed real-time calculation of
massive data.
5. Anti-fragmentation
High-frequency solenoid valve, equipped with targeted positioning, flexible rejection, soft
touch and other modules to protect all materials
6. Parallel Processing
The synchronization recognition algorithm of color selection, shape selection, quality
selection,can accurately identify each kind of material, the recognition accuracy is higher,
and the recognition range is wider.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (Kg/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 100-200 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 150-250 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 200-400 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 300-500 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 400-600 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 400-600 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 500-700 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take Edamame with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case:
Frozen Onions Frozen Maize Frozen Beans Frozen Edamame
Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we generally
give a capacity range.
