Intelligent Removal Wild Jujube Sorting Machine Waterfall Structure 4317*2077*1795
1 set
Intelligent Removal Wild Jujube Sorting Machine Waterfall Structure 4317*2077*1795
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVR-10
High Light:

Jujube Sorting Machine


Jujube Color Sorter

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Structure: Waterfall
HS CODE: 84371010
Power(Kw): 8.3
Dimension(mm): 4317*2077*1795
Weight(Kg): 2520
Software: Microsoft
Power Supply: MeanWell Brand
Lens: Phoenix
Product Description

640 Channels High Sorting Accuracy RGB Basmati Rice Color Sorter

Main Features :
1. High-speed Data Processing Software
    Real-time display of images, using high-speed parallel data processing chips, combined
    with the core software system independently designed by Coreprogram, to recognise
    color and shape, combined with multiple modes of intelligent and complex algorithms, to
    sort all kinds of miscellaneous materials.

2. Light Source System
    Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet
    the sorting of more than a thousand colors, and selects the color of miscellaneous by
    identifying subtle changes in colors.

3. Intelligent Dust-cleaning System
   Through the blowing system, a high-speed airflow is generated to quickly remove dust
   and light objects on the glass in front of the lens.

4. Float Jet Valve Design
   The high-speed spray valve developed for the characteristics of the selected object
   adopts the unique mag-lev technology , so that the spray valve is matched with the
   equipment, the service life is increased by 5 times, and the air consumption is reduced
   by 20%.

5. Automatic Fault Detection
    A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.

Technical Parameters:

Model Capacity
Optimized Carryover
Sorting Accuracy





XCS80 0.8-2.0 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 1.0-2.5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 1.2-3.0 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 1.4-3.5 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 1.6-4.0 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 2.0-5.0 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 2.4-6.0 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
          will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

Intelligent Removal Wild Jujube Sorting Machine Waterfall Structure 4317*2077*1795 0

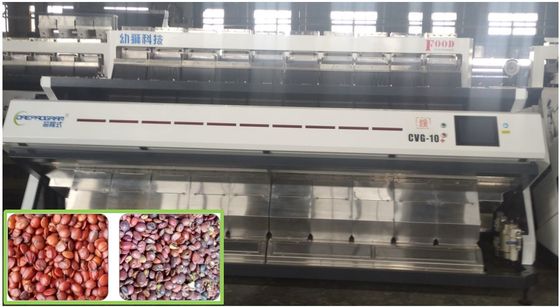

Sorting Case :

                                                  Example Of Wild Jujube Sorting
       Intelligent Removal Wild Jujube Sorting Machine Waterfall Structure 4317*2077*1795 1
                                  Accepted Jujube                                                Rejected Jujube

Our Service:

• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
