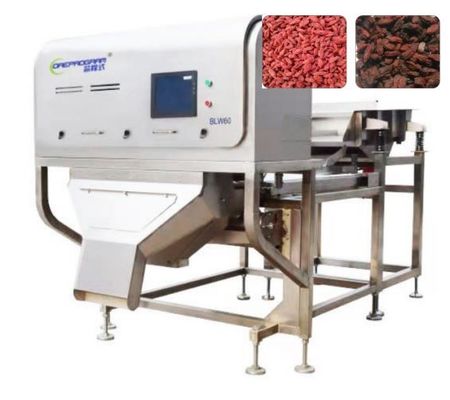

Single Layer Belt Type HD Camera Wolfberry Color Sorter Sorting Machine

Product Advantages:
High-quality Distinction System
Adopting HD full color 5000+ PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
Image Processing System
Adopting the chips of FPGA and DSP from companies of Alter and TI.
The forth generation processing technology of EPGA which sharply promote the processing speed.
Adjustable Light Source Technology
The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Self-cleaning System
Special cleaning and dust absorption device provide a better production environment.
Original Creative High Frequency Solenoid Valve
With the national patent certification, operating reached 10 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly, ultra low air-consumption.
Intelligent Operation Surface
Advanced touch screen proves the zooming and sliding function which is easy to test and operate. Multiple sorting modes enable easier operation.

 Working Schematic:

      From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole.

Sorting Case :

                         Example Of Coffee Beans Sorting

                         Accepted                                                                       Rejected
