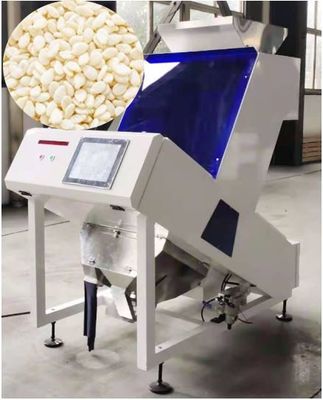

1 Chute Multi-purpose High Accuracy White Sesame Color Sorter
Advantages Of Coreprogram :
1. Professional R & D Team
Self-developed image deep learning algorithm system + multi-spectral sorting technology.
2. Advanced product equipment
Original high-frequency and high-sensitivity solenoid valve + adaptive removal technology.
3. Excellent after-sales Service
Big data + cloud interconnection, realizing 24-hour online support by engineers.
4. Light Source Processing System
Unique trichromatic light free switching background board, light source can be flexibly
switched at will, suitable for choosing different particles and flake materials.
5. Friendly UI
Intelligent operating platform, easy to learn , easy to operate, truly realize man-machine
dialogue, intelligent connection, and worry-free.
6. Image Acquisition and Processing System
International high-end 2048 full-color line scan technology, DSP/FPGA international
cutting-edge processing technology, color and shape combination, multiple modes of
intelligent and complex algorithms, 10,000 kinds of materials can be selected at will.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.3-0.5 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 1-2.2 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 1.2-2.5 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 1.5-3.0 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 2.0-3.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 2.5-4.0 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 3-4.5 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .
Sorting Case :
Example Of White Sesame Sorting
Accepted Sesame Rejected Sesame
