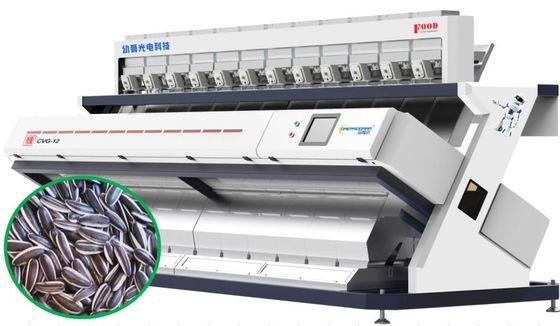

High Capacity Automatic Fault Detection Sunflower Seeds Color Sorter
Main Features:
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information of
trichromatic of red, green and blue, with complementary stepless dimming, it can also
identify impurities in depth, and has a strong ability to identify color differences.
2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined
with the core software system independently designed by Coreprogram, to recognise color
and shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds
of miscellaneous materials.
3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the
sorting of more than a thousand colors, and selects the color of miscellaneous by identifying
subtle changes in colors.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-2.0 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 1.0-2.5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 1.2-3.0 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 1.4-3.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 1.6-4.0 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 2.0-5.0 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 2.4-6.0 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the
good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts.
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8.What's the capacity ?
The capacity in the table is a little different due to different impurities ratio.
