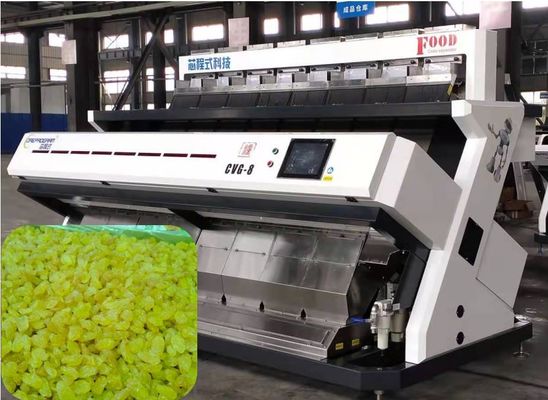

512 Channels Automatic Fault Detection Raisin Color Sorter Processing Machine
Product Advantages
1.Professional R & D team
Self-developed image deep learning algorithm system + multi-spectral sorting technology.
2.Advanced product equipment
Original high-frequency and high-sensitivity solenoid valve + adaptive removal technology.
3. Excellent After-sales Service
Big data + cloud interconnection, realizing 24-hour online support by engineers.
4.Light Source Processing System
Unique trichromatic light free switching background board, light source can be flexibly switched at will, suitable for choosing different particles and flake materials.
5. Friendly UI
Intelligent operating platform, easy to learn , easy to operate, truly realize man-machine dialogue, intelligent connection, and worry-free.
6.Image Acquisition And Processing System
International high-end 2048 full-color line scan technology, DSP/FPGA international cutting-edge processing technology, color and shape combination, multiple modes of intelligent and complex algorithms, 10,000 kinds of materials can be selected at will.
7.Reliable Dust Cleaning System
High-speed airflow generated by the fan blows quickly to remove dust and light objects on the front glass of the lens to ensure resolution and color selection accuracy.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3.5-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject). we send the
sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
