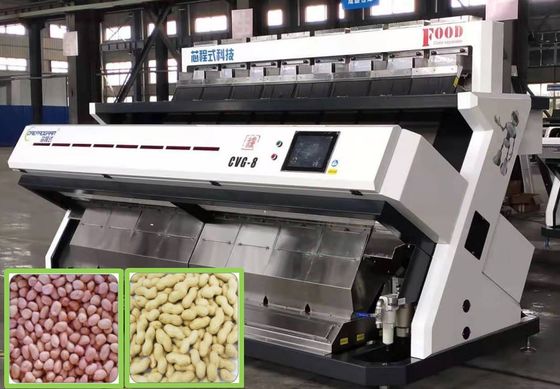

RGB Trichromatic Color Sorter , Intelligent Removal Peanut sorter Machine
1 set
RGB Trichromatic Color Sorter , Intelligent Removal Peanut sorter Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVG-8
High Light:

Trichromatic Color Sorter


Peanut sorter Machine


Peanut Color Sorter Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Structure: Waterfall
Power(Kw): 6.0
Weight(Kg): 2170
Size(mm): 3641*2077*1795
Sensor Chips: Toshiba
Processor: Altera
Filter: SMC
Lens: Phoenix
Product Description
Cashew Nut Processing Equipment CCD Optical Cashew Nut Color Sorter
Product Advantages:
High-quality Distinction System
Adopting HD full color 5000+ PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
Image Processing System
Adopting the chips of FPGA and DSP from companies of Alter and TI.
The forth generation processing technology of EPGA which sharply promote the processing speed.
Adjustable Light Source Technology
The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information; LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Self-cleaning System
Special cleaning and dust absorption device provide a better production environment.
Original Creative High Frequency Solenoid Valve
With the national patent certification, operating reached 10 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly, ultra low air-consumption.
Intelligent Operation Surface
Advanced touch screen proves the zooming and sliding function which is easy to test and operate. Multiple sorting modes enable easier operation.

Technical Parameters
Model Capacity
Optimized Carryover
Sorting Accuracy





XCS80 0.8-1.2 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 3-5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 3.5-6 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 3.5-8 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 4-9 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 5-12 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 6-13 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
         will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

RGB Trichromatic Color Sorter , Intelligent Removal Peanut sorter Machine 0

          From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole  . The accepted materials will come out from the accepted hole .

Sorting Case :
RGB Trichromatic Color Sorter , Intelligent Removal Peanut sorter Machine 1
                    Accepted Peanuts                                                             Rejected Peanuts
  RGB Trichromatic Color Sorter , Intelligent Removal Peanut sorter Machine 2
               Accepted Peanut Kernels                                                Rejected Peanut Kernels

Our Service:

• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
