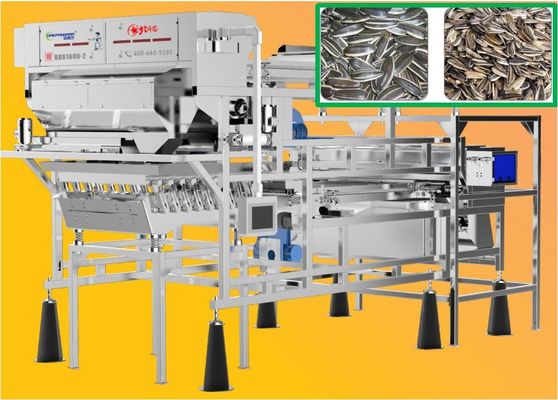

High Accuracy Belt-type Sunflower Seeds Sorting Machine Processing Equipment
Product Advantages:
High-quality Distinction System
Adopting HD full color 5000+ PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
Image Processing System
Adopting the chips of FPGA and DSP from companies of Alter and TI.
The forth generation processing technology of EPGA which sharply promote the processing speed.
Adjustable Light Source Technology
The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Self-cleaning System
Special cleaning and dust absorption device provide a better production environment.
Original Creative High Frequency Solenoid Valve
With the national patent certification, operating reached 10 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly, ultra low air-consumption.
Intelligent Operation Surface
Advanced touch screen proves the zooming and sliding function which is easy to test and operate. Multiple sorting modes enable easier operation.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) | Power (Kw) | Sorting Accuracy(%) | Capacity (t/h) | Carryover Ratio | Dimension(mm) (L*W*H) | Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.5-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take Peanuts with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Example of Sunflower Seeds Sorting
Accepted Rejected
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer
to assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the
good material (which is you want to accept) ,bad material (which is you want to reject).
we send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we
generally provide a capacity range.
