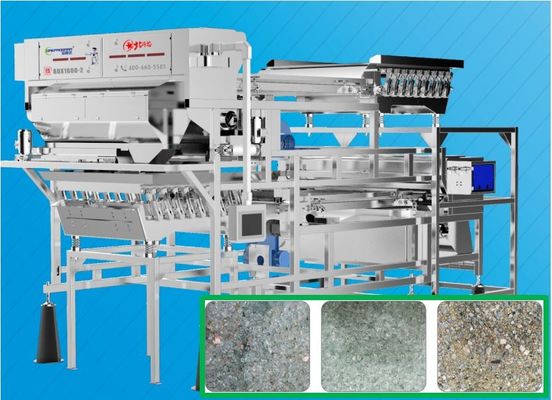

Intelligent Removal HD Recognition Broken Glass Recycling Color Sorter
CCD Optical Color Sorters Features:
High-resolution CCD Image Acquisition and Sensing System
5400 pixel high resolution full color CCD trap camera,with complementary dimming,deep identification of tiny and delicate magazines to ensure the product's ability to identify micro-chromatic aberrations
High-speed Data Processing Software
Self-designed core software, “DSP+FPGA” process technique ensures the high working efficiency and accurate calculating, accurately identify colors and shapes,multiple modes of intelligent and complex algorithms, providing "color sort + shape sort" solutions for different materials,Effectively remove diseased spots, rice husks, mildew, stones, white belly and other hetero-chromatic particles in rice.
Light Source System
Longer life, high-purity spectrum, provide high-definition image quality, can meet the sorting of more than a thousand colors
AI Design
Touch screen operation platform, user-friendly and easy-to-learn operation interface, making color selection simpler and smarter, reducing manual errors, and providing powerful learning capabilities.
Float Jet Valve Design
The unique magnetic levitation technology is adopted to make the spray valve match other execution units, increase the service life and reduce the air consumption.
Automatic Fault Detection
A variety of faults are automatically diagnosed, and automatically warned, which is convenient for detecting faults.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy (%) |
Capacity (T/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-1.0 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.4 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.0-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 2.5-4.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.0-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.0-4.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take industrial plastics with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case:
Example Of Broken Glass Sorting
Raw Materials Accepted Broken Glass Rejected Broken Glass
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
