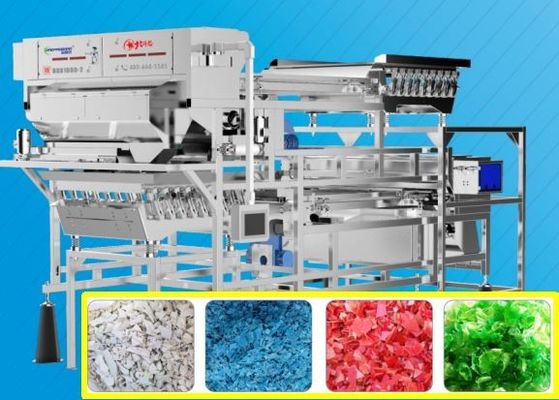

High Sorting Accuracy Plastic Colour Sorter Machine Sorting Equipment
Main Features:
1. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with
the core software system independently designed by Coreprogram, to recognise color and shape,
combined with multiple modes of intelligent and complex algorithms, to sort all kinds
of miscellaneous materials.
2. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the
sorting of more than a thousand colors, and selects the color of miscellaneous by identifying
subtle changes in colors.
3. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and light
objects on the glass in front of the lens.
4. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing
powerful learning capabilities.
5. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts
the unique mag-lev technology , so that the spray valve is matched with the equipment, the service
life is increased by 5 times, and the air consumption is reduced by 20%.
6. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (T/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-1.0 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.4 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.0-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 2.5-4.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.0-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.0-4.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take industrial plastics with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case:
Example Of Plastic Sorting
Accepted White Accepted Blue Accepted Red Accepted Green Raw Materials
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .
