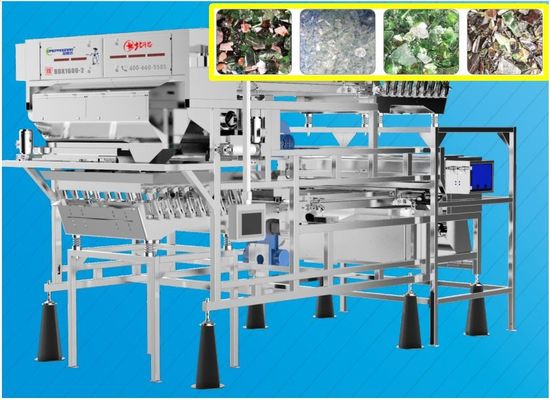

Intelligent High Output Broken Color Glass Recycling Glass Colour Sorter
Main Features:
1. Advanced Image Acquisition System
HD camera and RGB camera(5400 pixels) with high quality industrial lens to achieve
clear and accurate image acquisition.The camera could capture the micro defects
of material instantly.
2. Intelligent Image Processing Algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with
shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series
of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3. High Quality Solenoid Valve(ejector)
The valve has longer lifespan,high frequency and low air consumption.The working frequency
is 1000 times/s,which guarantees the accurate and perfect ejecting performance.
4. High Efficiency And Reliable Light Source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect
performance.
5. Simple Operation, Easy to Learn And Use
Simple optical system design, precise automatic correction system, combined with the well-designed
human-machine interface to simplify the complexity of machine commissioning and use, ensuring
the simple operation and the machine is easy to learn and use.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (T/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-1.0 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.4 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.0-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 2.5-4.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.0-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.0-4.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take industrial plastics with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case:
Example Of Broken Glass Sorting
Raw Materials Transparent Green Brown
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we
generally provide a capacity range.
