Frozen Bean Color Sorter Machine , Potato Sorting Equipment With Phoenix Lens
1 set
Frozen Bean Color Sorter Machine , Potato Sorting Equipment With Phoenix Lens
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

Bean Color Sorter Machine


Potato Sorting Equipment


Potato Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Voltage(V/Hz): 220/50
Power(Kw): 8.75
Filter: SMC
Auto Dust Cleaning: OBEND
Software: Microsoft
Lens: Phoenix
Light Source: Osram
Touch Screen: Advantech
Product Description

High Accuracy Frozen Beans Potatoes Granules Sorting Machine Processing Equipment

Main Features :

1. Advanced Product Equipment
    Original high-frequency and high-sensitivity solenoid valve + adaptive removal technology

2. Light Source Processing System
    Unique trichromatic light free switching background board, light source can be flexibly
    switched at will, suitable for choosing different particles and flake materials

3. Friendly UI
    Intelligent operating platform, easy to learn , easy to operate, truly realize man-machine
    dialogue, intelligent connection, and worry-free

4. Image Acquisition and Processing System
    International high-end 2048 full-color line scan technology, DSP/FPGA international
    cutting-edge processing technology, color and shape combination, multiple modes of
    intelligent and complex algorithms, 10,000 kinds of materials can be selected at will.

5. Reliable Dust Cleaning System
    High-speed airflow generated by the fan blows quickly to remove dust and light objects
    on the front glass of the lens to ensure resolution and color selection accuracy.

Technical Parameters:

Model Layers Number Voltage
Sorting Accuracy(%) Capacity
BDX640-1 1 220/50 2.9 >99.9% 0.3-0.7 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 0.4-1.0 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 0.6-1.0 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 1.0-1.5 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 1.5-2.0 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 1.3-1.8 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 2.0-2.5 >10:1 3830x3840x2530 3765

Note: The above parameters take edamame with 5% impurities ratio as an example .
          Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.

Sorting Case:

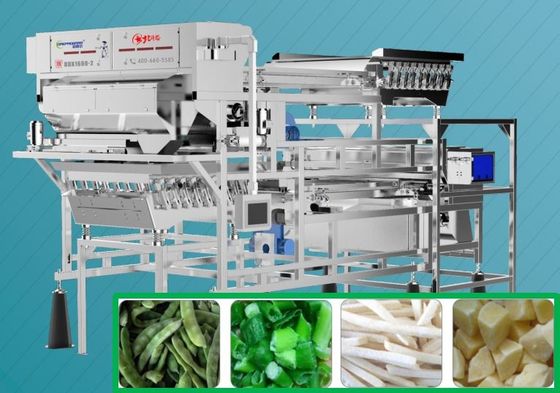

                           Example Of Beans Scallion Potatoes Sorting                                                                     Frozen Bean Color Sorter Machine , Potato Sorting Equipment With Phoenix Lens 0

    Green Beans               Chopped Scallion           Potato Chips                Potato Granules

Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box


1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good material (which is you want to accept) ,bad material (which is you want to reject). we send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.

8.What's the capacity ?
The capacity above is a little different due to different impurities ratio .

Our Service:
• One year quality warranty for the machine and spare parts
• Engineers service for installation overseas
• Whole-life after-sales service and free consultation
• Customized requirements available
• Technician guide at the site.
• 24 Hrs online service
