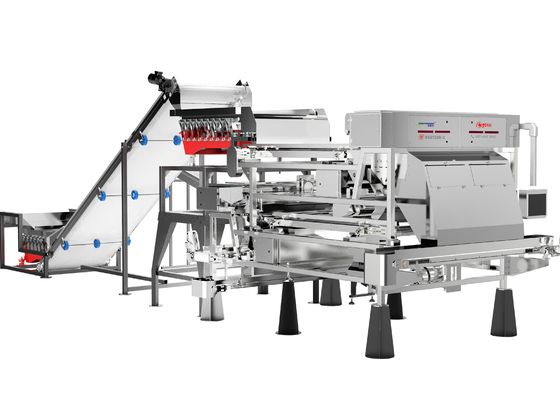

Intelligent Interconnection High Accuracy Dehydrated Chili Color Sorter
Main Features :
1. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet
the sorting of more than a thousand colors, and selects the color of miscellaneous by
identifying subtle changes in colors.
2. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and
light objects on the glass in front of the lens.
3. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing powerful
learning capabilities.
4. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts
the unique mag-lev technology , so that the spray valve is matched with the equipment, the
service life is increased by 5 times, and the air consumption is reduced by 20%.
5. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.3-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.4-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 0.6-1.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 1.0-1.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 1.5-2.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 1.3-1.8 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 2.0-2.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take edamame with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case:
Example Of Dehydrated Granules Sorting
Accepted Dehydrated Chili Rejected Dehydrated Chili
Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity above is a little different due to different impurities ratio .So we
generally provide a capacity range.
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
