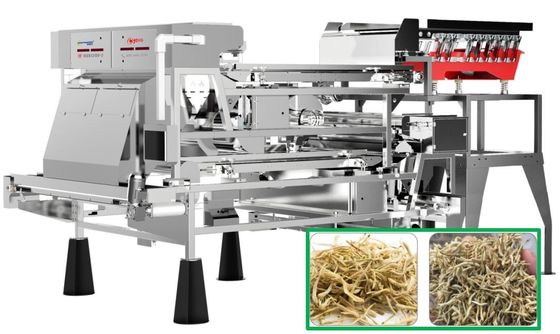

Intelligent Recognition Dehydrated Honeysuckle Sorter Processing Equipment
Main Features :
1. Independently developed image deeply learning algorithm system + multi-spectral sorting
technology.
2. Original high-frequency and high-sensitivity solenoid valve + adaptive rejection technology.
3. Big data + cloud interconnection, realizing 24-hour online support by engineers
4. The fifth-generation FPGA chip, super computing, realizing ultra-high-speed real-time
computing of massive data.
5. Anti-fragmentation, targeted positioning, flexible removal, soft touch module, protect materials.
6. Parallel processing, the synchronization recognition algorithm of color selection, shape
selection, quality selection , higher accuracy and wider recognition range .
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.3-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.4-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 0.6-1.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 1.0-1.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 1.5-2.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 1.3-1.8 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 2.0-2.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dehydrated carrots with 5% impurities ratio as an
example.Due to different raw materials and different impurities ratio, parameters
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11).
Sorting Case:
Example Of Dehydrated Honeysuckle Sorting
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
