Precise Target Frozen Onion / Green Bean Sorting Machine 1.5-2.0 T/H
1 set
Precise Target Frozen Onion / Green Bean Sorting Machine 1.5-2.0 T/H
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

Onion Sorting Machine


1.5 T/H Green Bean Sorting Equipment


2.0 T/H Green Bean Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Size(mm): 5300*3750*3200
WeightKg): 2765
Power(Kw): 8.75
Light Source: Osram
Software: Microsoft
Processor: Altera
Carryover(bad:good): ≥10:1
Power Supply: MeanWell Brand
Product Description

 Precise Target Frozen Onion Granules Maize Green Beans Color Sorter

Product Superiority:

1. Coreprogram Color Sorter is committed to developing advanced core technology ,We provide
    you with quality machines and excellent services

2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet
    fine classification requirements and get good shape selection and color selection.

3. Online Engineering service is always available while providing installation and after-sale
    service locally in all countries.
4. intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption
    and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery
    system ensures low maintenance cost and long lifetime over 15 billion times.

5. Efficient double-layer for second-selection
    We provide slow and fast series, infrared series, four-view series single and double layer
    color sorters to meet the needs of customers at different levels.
6. Meet customer demands
    Have excellent performance for special materials such as large volume, irregular, easily
    broken, high humidity,strong corrosiveness, high impurity rate, multiple colors, etc.
7. Intelligent cleaning design
    One lens with one brush, and multiple dust removal devices, blow dust to remove floating light
    objects without contact, reduce the interference of dust on the lens capture, and improve the
    accuracy of recognition.

  • Technical Parameters:

Model Layers Number Voltage
Sorting Accuracy(%) Capacity
BDX640-1 1 220/50 2.9 >99.9% 0.3-0.7 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 0.4-1.0 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 0.6-1.0 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 1.0-1.5 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 1.5-2.0 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 1.3-1.8 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 2.0-2.5 >10:1 3830x3840x2530 3765

Note: The above parameters take edamame with 5% impurities ratio as an example .
          Due to different raw materials and different impurities ratio , parameters above will vary
          to some extent ,which are references for you choosing a suitable model.

Sorting Case:

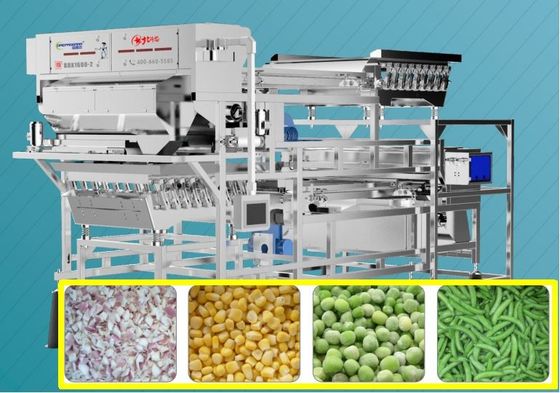

      Example Of Frozen Onion Granules Maize Green Beans Sorting

 Precise Target Frozen Onion / Green Bean Sorting Machine 1.5-2.0 T/H 0

      Onion Granules            Frozen Maize                 Green Beans            Green Bean Pods

Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box


1. How about after-sale services overseas?
    After-sale services are available to overseas customers. Internet + mobile app, making the
    operation and maintenance more convenient and easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to
    assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material,
    the good material (which is you want to accept) ,bad material (which is you want to reject).
    We send the sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
    purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.

8. What's the capacity ?
   The capacity above is a little different due to different impurities ratio .We generally
    provide a capacity range.
