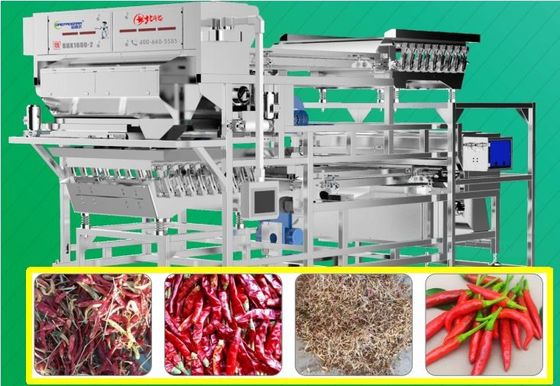

Intelligent Removal Reliable Performance Facing Heaven Pepper Sorting Machine
Advantages Of Coreprogram :
1. Efficient double-layer for second-selection, single layer is optional.
We provide slow and fast series, infrared series, four-view series single and
double layer color sorters to meet the needs of customers at different levels.
2. Intelligent cleaning design
One lens with one brush, and multiple dust removal devices, blow dust to remove
floatinglight objects without contact, reduce the interference of dust on the lens capture,
and improve the accuracy of recognition.
3. Suitable for dry and wet chilli sorting.
4. AI+Multidimensional space algorithm can accurately identify subtle shape differences
to meet fine classification requirements and get good shape selection and color selection.
5. Online Engineering service is always available while providing installation and after-sale service
locally in all countries.
6. Intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption
and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system
ensures low maintenance cost and long lifetime over 15 billion times.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (Kg/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 100-200 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 150-250 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 200-400 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 300-500 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 400-600 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 400-600 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 500-700 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take facing heaven pepper with 20% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Example Facing Heaven Pepper Sorting
Raw Material Accepted Rejected Fresh Sorting
Packaging Details:
Dedicated wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 working days after received deposit.
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the
good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .We generally
provide an output range.
