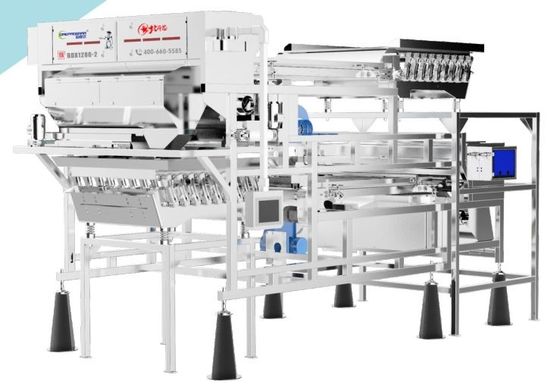

Intelligent Belt-Type Color Shape Selection Red Dry Chili Sorting Machine
Advantages Of Coreprogram :
1. Efficient double-layer for second-selection, single layer is optional.
We provide slow and fast series, infrared series, four-view series single and
double layer color sorters to meet the needs of customers at different levels.
2. Meet customer needs
For special materials such as large volume, irregular, easily broken, high humidity,
strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent cleaning design
One lens with one brush, and multiple dust removal devices, blow dust to remove
floatinglight objects without contact, reduce the interference of dust on the lens capture,
and improve the accuracy of recognition.
4. Suitable for dry and wet chilli sorting .
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (Kg/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 100-200 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 150-250 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 200-400 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 300-500 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 400-600 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 400-600 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 500-700 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take facing heaven pepper with 20% impurities ratio as an
example.Due to different raw materials and different impurities ratio , parameters
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case:
Example Of Dry Chili Stem Sorting
Raw Material Accepted Rejected
Example Of Fresh Chili Sorting
Raw Material Accepted Rejected
Example Of Chili Flakes Sorting
Raw Material Accepted Rejected
Packaging Details:
Dedicated wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 working days after received deposit.
