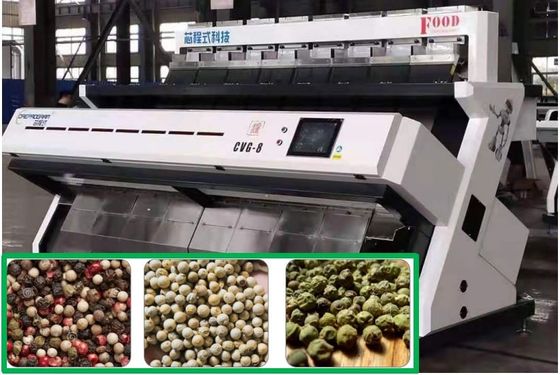

PreciseTarget Positioning Remote Interconnection Black Pepper Color Sorter
Main Features :
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information
of trichromatic of red, green and blue, with complementary stepless dimming, it can also
identify impurities in depth, and has a strong ability to identify color differences.
2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined
with the core software system independently designed by Coreprogram, to recognise color and
shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds of
miscellaneous materials.
3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can
meet the sorting of more than a thousand colors, and selects the color of miscellaneous
by identifying subtle changes in colors.
4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove
dust and light objects on the glass in front of the lens.
5. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation
interface, making color selection simpler and smarter, reducing manual errors, and
providing powerful learning capabilities.
6. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object
adopts the unique mag-lev technology , so that the spray valve is matched with the
equipment, the service life is increased by 5 times, and the air consumption is reduced
by 20%.
7. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Capacity (t/h) | Optimized Carryover (bad:good) | Sorting Accuracy (%) | Power (Kw) | Voltage (V/Hz) | Dimension L×W×H(mm) | Weight (kg) |
| XCS80 | 0.4-0.8 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 1.5-3 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 1.8-3.5 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 2.0-4.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 2.5-5.0 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 3-6.0 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 3.6-7.5 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case :
Example of Pepper Sorting
Raw Material Accepted White Accepted Green
Accepted Red Accepted Black Rejected
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
