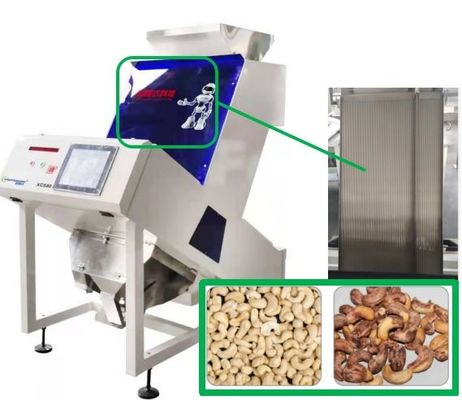

1 Chute Multi - Purpose Stable Performance Cashew Nuts Color Sorter
Main Features :
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information
of trichromatic of red, green and blue, with complementary stepless dimming, it can also
identify impurities in depth, and has a strong ability to identify color differences.
2. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet
the sorting of more than a thousand colors, and selects the color of miscellaneous by
identifying subtle changes in colors.
3. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust
and light objects on the glass in front of the lens.
4. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation
interface, making color selection simpler and smarter, reducing manual errors, and
providing powerful learning capabilities.
5. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object
adopts the unique mag-lev technology , so that the spray valve is matched with the
equipment, the service life is increased by 5 times, and the air consumption is
reduced by 20%.
7. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.5 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .
Sorting Case :
Rejected Cashew Accepted Cashew
