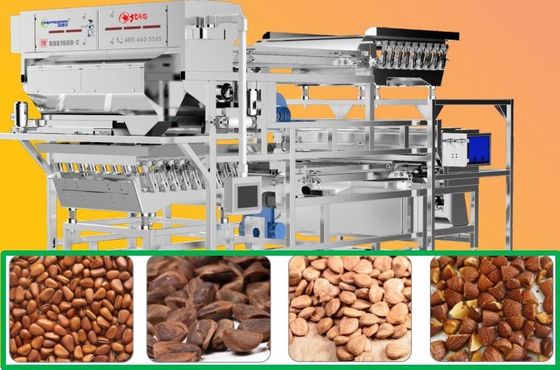

High Stability Belt - Type Almonds Indian Pine Nut Sorting Machine
Product Superiority
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information of
trichromatic of red, green and blue, with complementary stepless dimming, it can also identify
impurities in depth, and has a strong ability to identify color differences.
2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with
the core software system independently designed by Coreprogram, to recognise color and
shape,combined with multiple modes of intelligent and complex algorithms, to sort all kinds of
miscellaneous materials.
3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the
sorting of more than a thousand colors, and selects the color of miscellaneous by identifying
subtle changes in colors.
4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and light
objects on the glass in front of the lens.
5. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing powerful
learning capabilities.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) | Power (Kw) | Sorting Accuracy(%) | Capacity (t/h) | Carryover Ratio | Dimension(mm) (L*W*H) | Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.5-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take Peanuts with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case :
Example of Pine Nut And Almonds Sorting
Accepted Rejected Accepted Rejected
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
