Precise Removal Belt Badam Nuts Almonds Walnuts Color Sorter Sorting Machine
Product Superiority
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information of
trichromatic of red, green and blue, with complementary stepless dimming, it can also identify
impurities in depth, and has a strong ability to identify color differences.
2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with
the core software system independently designed by Coreprogram, to recognise color and
shape,combined with multiple modes of intelligent and complex algorithms, to sort all kinds of
miscellaneous materials.
3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the
sorting of more than a thousand colors, and selects the color of miscellaneous by identifying
subtle changes in colors.
4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and light
objects on the glass in front of the lens.
5. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing powerful
learning capabilities.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.5-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take Peanuts with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case :

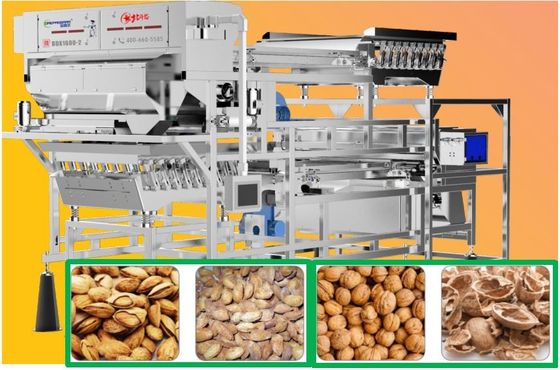

Example of Badam And Walnuts Sorting
Accepted Rejected Accepted Rejected
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist with
you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject). we send the
sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we generally give
an output range.
