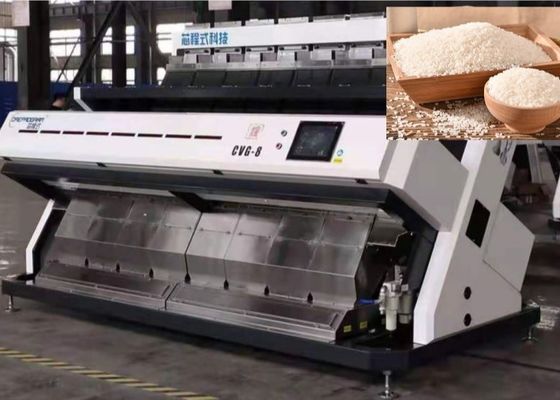

8 Chute Optical Sorting Machine 220V 50Hz with LED Light Source
1 set
8 Chute Optical Sorting Machine 220V 50Hz with LED Light Source
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVR-8
High Light:

50Hz Optical Sorting Machine


220V Optical Sorting Machine


8 Chute Optical Sorting Equipment

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Structure: Waterfall
HS CODE: 84371010
Pixel Of Camera: 5400
Dimension(mm): 3641*2077*1795
Weight(Kg): 2170
Voltage(V/Hz): 220/50
Power(Kw): 6.0
Light Source: LED
Dust Cleaning: OBEND
Filter: SMC
Product Description

8 Chute 220V 50Hz Optical Rice Sorting Machine Factory Price
Main Features:
1. Advanced Image Acquisition System
    High resolution monochromatic camera or RGB camera(5400 pixels) with high quality industrial
    lens to achieve clear and accurate image acquisition.The camera could capture the
    micro defects of material instantly.

2. Intelligent Image Processing Algorithm
    Color sorting algorithms of gray level,color difference and HSV are perfectly combined with
    shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of
    high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

3. High Quality Solenoid Valve(ejector)
    The valve has longer lifespan,high frequency and low air consumption.The working frequency is
    1000 times/s,which guarantees the accurate and perfect ejecting performance .

4. High Efficiency And Reliable Light Source
    Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect

5. Simple Operation, Easy to Learn And Use
    Simple optical system design, precise automatic correction system, combined with the
    well-designed human-machine interface to simplify the complexity of machine commissioning and
    use,ensuring the simple operation and the machine is easy to learn and use.

Technical Parameters:

Model Capacity
Optimized Carryover
Sorting Accuracy





XCS80 0.6-1.2 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 3-5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 3-6 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 3.5-7.5 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 4-8.5 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 5-11 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 6-13 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
           will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic:
8 Chute Optical Sorting Machine 220V 50Hz with LED Light Source 0
       From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .

Sorting Case :
      8 Chute Optical Sorting Machine 220V 50Hz with LED Light Source 1
   Accepted Rice           Rejected Rice                  Accepted Rice                 Rejected Rice
