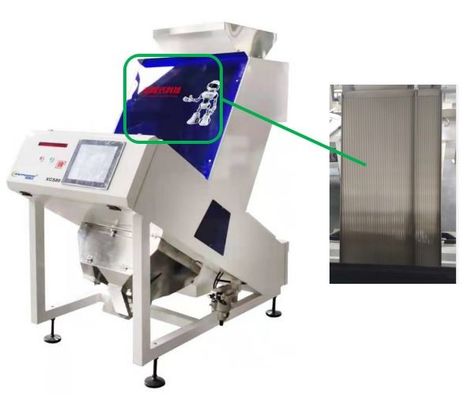

80 Channels Resorting Sorting Second Times With One Chute Rice Colour Sorter
Product Superiority :
1. Brand new photoelectric design LED light source, low power, low heat; the light source
and the sorting box are set independently to reduce the interference of dust on the material
sorting.
2. Unique bottom exhaust dust removal system, good dust removal effect, stable performance
in dusty environment
3. Compatible with infrared expansion module . Infrared can be selected to realize diversified
functions such as sorting of peanuts, shellless pumpkin seeds and raisins, foreign materials .
4. Internet + mobile app, making the operation and maintenance more convenient and easy .Our
machine supports remote control .
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.5 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .
Sorting Case :
