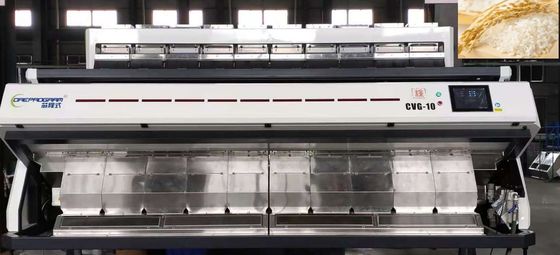

6 - 13 Tons Per Hour 10 Chutes Intelligent Removal RGB Rice Color Sorter
Main Features :
1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined
information of trichromatic of red, green and blue, with complementary stepless
dimming, it can also identify impurities in depth, and has a strong ability to identify
color differences.
2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined
with the core software system independently designed by Coreprogram, to recognise
color and shape, combined with multiple modes of intelligent and complex algorithms,
to sort all kinds of miscellaneous materials.
3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can
meet the sorting of more than a thousand colors, and selects the color of miscellaneous
by identifying subtle changes in colors.
4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust
and light objects on the glass in front of the lens.
5. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation
interface, making color selection simpler and smarter, reducing manual errors, and
providing powerful learning capabilities.
6. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) | Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3.5-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Working Schematic :
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
