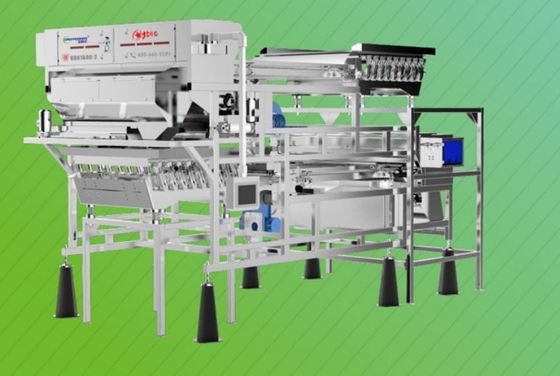

Flexible Removal Double-Layer Belt-Type Anti-Fragmentation Vegetable Color Sorter
Product Superiority:
1. Independently developed image deeply learning algorithm system + multi-spectral sorting
technology.
2. Original high-frequency and high-sensitivity solenoid valve + adaptive rejection technology.
3. Big data + cloud interconnection, realizing 24-hour online support by engineers.
4. The fifth-generation FPGA chip, super computing, realizing ultra-high-speed real-time
computing of massive data.
5. Anti-fragmentation, targeted positioning, flexible removal, soft touch module, protect materials.
6. Parallel processing, the synchronization recognition algorithm of color selection, shape
selection, quality selection , higher accuracy and wider recognition range .
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.3-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.4-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 0.6-1.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 1.0-1.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 1.5-2.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 1.3-1.8 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 2.0-2.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dehydrated carrots with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case:
Example Of Pea Sorting
Accepted Pea Rejected Pea
Example Of onions Sorting
Accepted Onions Rejected Onions
Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity above is a little different due to different impurities ratio .So we give a capacity
range.
