Intelligent Reliable Pepper Sorting Machine Chili Color Sorter
Main Features :
1. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined
with the core software system independently designed by Coreprogram, to recognise color
and shape, combined with multiple modes of intelligent and complex algorithms, to sort all
kinds of miscellaneous materials.
2. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can
meet the sorting of more than a thousand colors, and selects the color of miscellaneous
by identifying subtle changes in colors.
3. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust
and light objects on the glass in front of the lens.
4. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing powerful
learning capabilities.
5. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts the
unique mag-lev technology , so that the spray valve is matched with the equipment, the service
life is increased by 5 times, and the air consumption is reduced by 20%.
6. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |

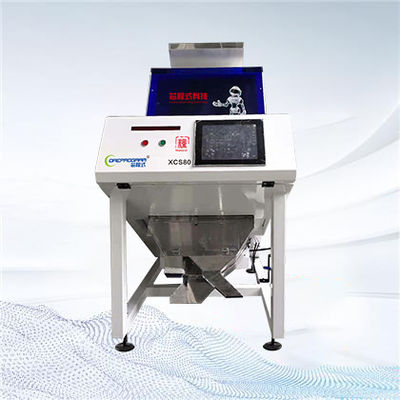

| XCS80 | 0.4-0.8 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 1.5-3 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 1.8-3.5 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 2.0-4.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 2.5-5.0 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 3-6.0 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 3.6-7.5 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11).
Sorting Case :
Accepted Chili Rejected Chili Accepted Chili Rejected Chili
