Low Power Consumption Sticky Rice Color Sorter With Quality Components
CCD Optical Color Sorters Features:
High-resolution CCD image acquisition and sensing system
5400 pixel high resolution full color CCD trap camera,with complementary dimming,deep identification of tiny and delicate magazines to ensure the product's ability to identify micro-chromatic aberrations
High-speed data processing software
Self-designed core software, “DSP+FPGA” process technique ensures the high working efficiency and accurate calculating, accurately identify colors and shapes,multiple modes of intelligent and complex algorithms, providing "color sort + shape sort" solutions for different materials,Effectively remove diseased spots, rice husks, mildew, stones, white belly and other hetero-chromatic particles in rice.
Light source system
Longer life, high-purity spectrum, provide high-definition image quality, can meet the sorting of more than a thousand colors
AI design
Touch screen operation platform, user-friendly and easy-to-learn operation interface, making color selection simpler and smarter, reducing manual errors, and providing powerful learning capabilities.
Float jet valve design
The unique magnetic levitation technology is adopted to make the spray valve match other execution units, increase the service life and reduce the air consumption.
Automatic fault detection
A variety of faults are automatically diagnosed, and automatically warned, which is convenient for detecting faults.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) | Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |

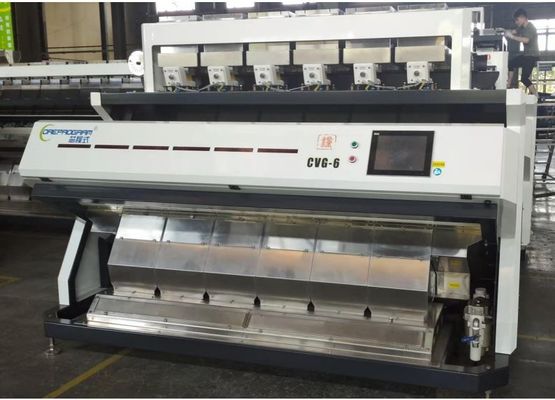

| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Rejected Sticky Rice Accepted Sticky Rice
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
