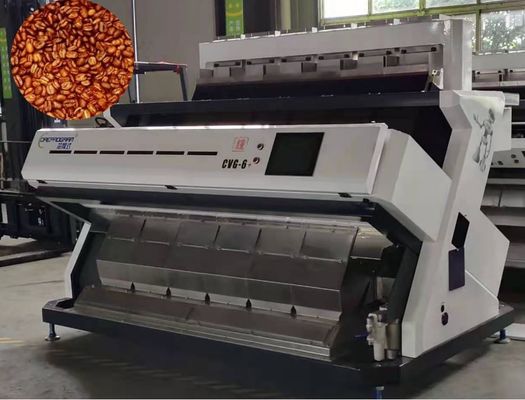

6-chute 384 Channels Remote Commissioning Coffee Beans Color Sorter
Product Superiority :
1. Independently developed image deeply learning algorithm system + multi-spectral sorting
technology.
2. Original high-frequency and high-sensitivity solenoid valve + adaptive rejection technology.
3. Big data + cloud interconnection, realizing 24-hour online support by engineers.
4. The fifth-generation FPGA chip, super computing, realizing ultra-high-speed real-time
computing of massive data.
5. Anti-fragmentation, targeted positioning, flexible removal, soft touch module,
protect materials.
6. Parallel processing, the synchronization recognition algorithm of color selection, shape selection,
quality selection , higher accuracy and wider recognition range.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case :
Example of Coffee Beans Sorting
Our Service:
• One year quality warranty for the machine and spare parts
• Engineers service for installation overseas
• Whole-life after-sales service and free consultation
• Customized requirements available
• Technician guide at the site.
• 24 Hrs online service.
