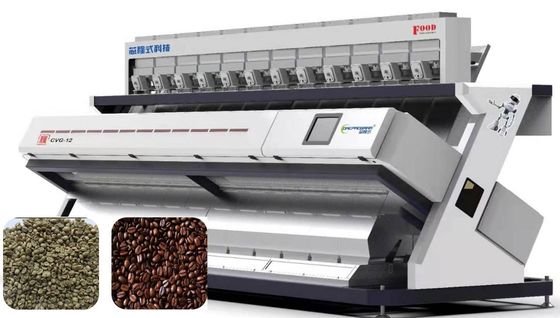

768 Channels High Output Coffee Beans Color Sorter Sorting Equipment
Main Features:
Full Color CCD Camera
Coreprogram vision system converts the captured pictures into signals through CCD camera, and then transmits the signals to a dedicated image processing system.
The 5400 pixels grade CCD color camera with sharpness up to 0.02mm2 can identify subtle color differences and defects successfully.
Advanced Image Processing System
Customize specific algorithm according to different sorting materials : excellent color sorting performance and sensitivity percentage could be set.
Remote Interconnection System
Remotely diagnoses sorting machine and assist with equipment operation are available after obtaining customers’ authorization.
Precise Target Technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD camera and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover ratio a lot.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3.5-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole .
