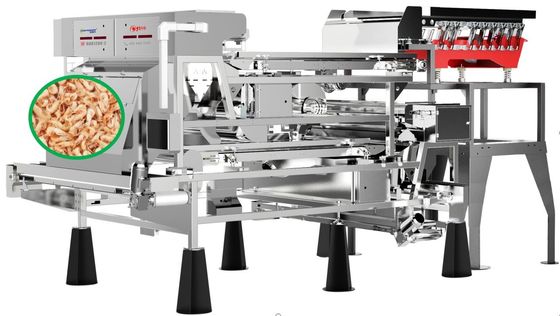

Mobile Control Lower Damage Shrimp Color Sorter Sorting Equipment
Product Superiority :
1. Brand new photoelectric design LED light source, low power, low heat; the light source and
the sorting box are set independently to reduce the interference of dust on the material sorting .
2. Unique bottom exhaust dust removal system, good dust removal effect, stable performance in
dusty environment .
3. Compatible with infrared expansion module . Infrared can be selected to realize diversified
functions such as sorting of peanuts, shellless pumpkin seeds and raisins, foreign materials .
4. Measures are taken for splashing granules in the product streams, and the product provides
the most efficient and stable flow.
5. The fourth-generation FPGA processor technology provides excellent processing speed and
massive data efficiency.
6. Faster and easier to use with new touch panel and software .
7. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
with top dust extraction equipment.
8. The automatic background adjustment function, open frame and special unloading system
facilitates make it easy for installation, operation and general maintenance of the machine.
9. The model is equipped with a new generation of lenses and camera. It captures the HD
images for high accuracy and has high level ability to detect the defects..
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.6-1.1 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 1.0-1.5 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.5-2.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2-2.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dried shrimps with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case:
Example Of Dehydrated Shrimp Sorting
Accepted Rejected
Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject). we send the
sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity above is a little different due to different impurities ratio . We generally
provide a capacity range.
