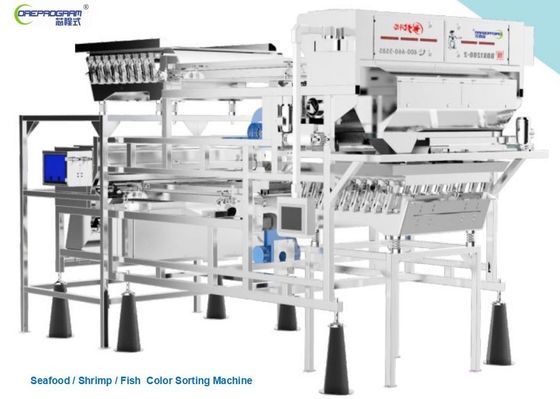

Double-layer Belt-Type Intelligent Removal Seafood Shrimp Fish Sorting Machine
Main Features :
Full Color CCD Camera
Coreprogram vision system converts the captured pictures into signals through CCD camera, and then transmits the signals to a dedicated image processing system.
The 5400 pixels grade CCD color camera with sharpness up to 0.02mm2 can identify subtle color differences and defects successfully.
Advanced Image Processing System
Customize specific algorithm according to different sorting materials : excellent color sorting performance and sensitivity percentage could be set.
Lower Damage Ratio By Belt-type Structure Design
Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that the damage ratio is much lower than that of traditional chute-type color sorter.
Remote Interconnection System
Remotely diagnoses sorting machine and assist with equipment operation are available after obtaining customers’ authorization.
Precise Target Technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD camera and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover ratio a lot.
High-quality Customized Valves
With high frequency and strong power, they can accurately blow off some high density materials like minerals, quartz and many kinds of stones.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.6-1.1 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 1.0-1.5 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.5-2.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2-2.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dried shrimps with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Example Of Shrimp Sorting
