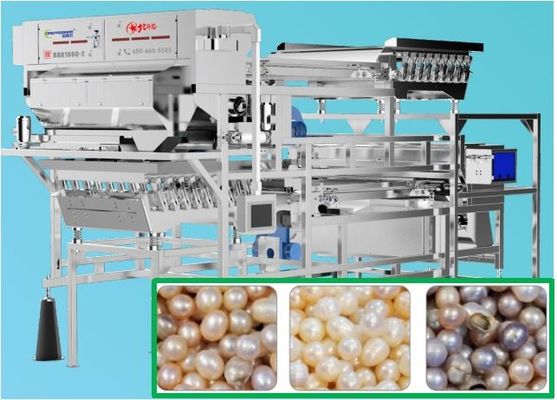

High Accuracy Precise Removal Reliable Quality Pearl Sorting Machine
Product Superiority :
1. High Speed Data Processing
The fifth-generation FPGA chip has greatly improved the calculation speed and the amount of
calculation data, and can easily realize the ultra-high-speed real-time calculation of massive
data.
2. Anti-fragmentation
High-frequency solenoid valve, equipped with targeted positioning, flexible rejection, soft
touch and other modules to protect all materials.
3. Efficient Double Selection
We provide slow and fast series, infrared series, anti-tracking deviation, four-view series single
and double layer color sorters to meet the demands of customers at different purpose.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.6-1.1 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 1.0-1.5 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.5-2.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2-2.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dried shrimps with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Example of Flower Shrimp Sorting
Raw Material Accepted Rejected
Raw Material Accepted Yellow Accepted White
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist with
you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject). we send the
sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK.
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .We generally
provide an output range.
