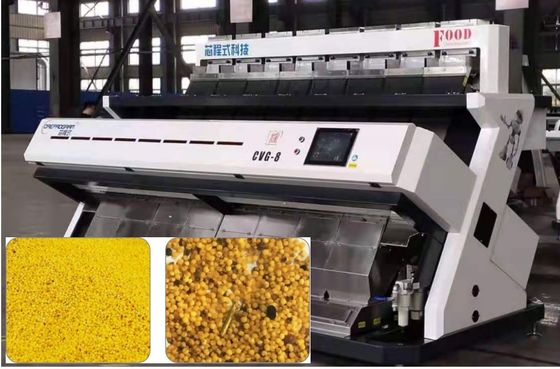

Remote Control Easy to Operate Yellow Millet Color Sorter Machine
CCD Optical Color Sorters Features:
High-resolution CCD Image Acquisition And Sensing System
5400 pixel high resolution full color CCD trap camera,with complementary dimming,deep identification of tiny and delicate magazines to ensure the product's ability to identify micro-chromatic aberrations
Light Source System
Longer life, high-purity spectrum, provide high-definition image quality, can meet the sorting of more than a thousand colors
AI Design
Touch screen operation platform, user-friendly and easy-to-learn operation interface, making color selection simpler and smarter, reducing manual errors, and providing powerful learning capabilities.
Float Jet Valve Design
The unique magnetic levitation technology is adopted to make the spray valve match other execution units, increase the service life and reduce the air consumption.
Automatic Fault Detection
A variety of faults are automatically diagnosed, and automatically warned, which is convenient for detecting faults.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case :
Example Of Yellow Millet Sorting
Accepted Rejected
