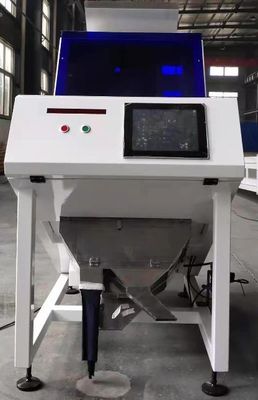

Self-cleaning System Precise Removal Raisin Sorting Machine Color Sorter
Product Advantages:
High-quality Distinction System
Adjustable Light Source Technology
The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Self-cleaning System
Special cleaning and dust absorption device provide a better production environment.
Original Creative High Frequency Solenoid Valve
With the national patent certification, operating reached 10 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly, ultra low air-consumption.
Intelligent Operation Surface
Advanced touch screen proves the zooming and sliding function which is easy to test and operate. Multiple sorting modes enable easier operation.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11) .
Sorting Case :
Example of Raisin Sorting
Raw Material Accepted Yellow Accepted Dark Accepted Green
