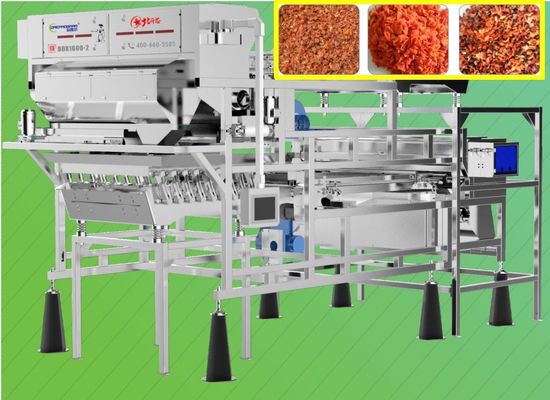

Dehydrated Carrot Sorting Machine Automatic Fault Detection 2.0 t/h 2 Layers
1 set
MOQ
Negotiable
Price
Dehydrated Carrot Sorting Machine Automatic Fault Detection 2.0 t/h 2 Layers
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

2 Layers Carrot Sorting Machine

,

2.0 T/H Carrot Sorting Machine

,

Carrot Automatic Colour Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Specifications
HS CODE: 84371010
Layers Number: 2
Dimension(mm): 5300x3750x3200
Weight(Kg): 2765
Power(Kw): 8.75
Processor: Altera
Filter: SMC
Software: Microsoft
Product Description

Automatic Fault Detection High Accuracy Dehydrated Carrots Sorting Machine

Main Features :

1. Measures are taken for splashing granules in the product streams, and the product provides
    the most efficient and stable flow.
2. The fourth-generation FPGA processor technology provides excellent processing speed and
    massive data efficiency.
3. Faster and easier to use with new touch panel and software .
4. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
    with top dust extraction equipment.
5. The automatic background adjustment function, open frame and special unloading system
     facilitates make it easy for installation, operation and general maintenance of the machine.
6. The model is equipped with a new generation of lenses and camera. It captures the HD
     images for high accuracy and has high level ability to detect the defects.

Technical Parameters:

Model Layers Number Voltage
(V/Hz)
Power
(Kw)
Sorting Accuracy(%) Capacity
(t/h)
Carryover
Ratio
Dimension(mm)
(L*W*H)
Weight
(Kg)
BDX640-1 1 220/50 2.9 >99.9% 0.3-0.7 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 0.4-1.0 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 0.6-1.0 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 1.0-1.5 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 1.5-2.0 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 1.3-1.8 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 2.0-2.5 >10:1 3830x3840x2530 3765

Note: The above parameters take edamame with 5% impurities ratio as an example .
          Due to different raw materials and different impurities ratio , parameters above will vary

to some extent ,which are references for you choosing a suitable model.

Sorting Case:

                   Example Of Dehydrated Carrot Flakes Sorting

Dehydrated Carrot Sorting Machine Automatic Fault Detection 2.0 t/h 2 Layers 0
         Raw Materials                                   Accepted                                    Rejected

Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box

FAQ:

1. How about after-sale services overseas?
    After-sale services are available to overseas customers. Internet + mobile app, making the
    operation and maintenance more convenient and easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to assist
    with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
    material (which is you want to accept) ,bad material (which is you want to reject). We send the
    sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
    purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.

8. What's the capacity ?
    The capacity above is a little different due to different impurities ratio .So we
    generally provide a capacity range.

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
