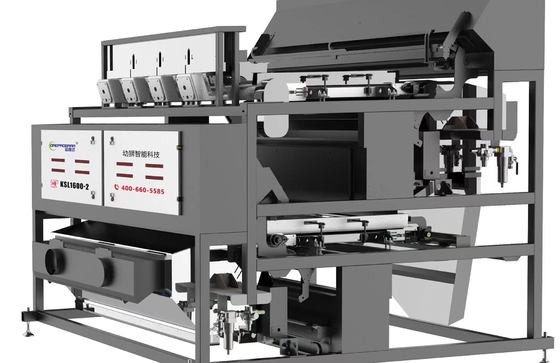

Automatic Remove Dust System Remote Control System raw Minerals Color Sorter
1 set
Automatic Remove Dust System Remote Control System raw Minerals  Color Sorter
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: KSL1600-2
High Light:

7.5Kw Mineral Sorting Machine


5400 Pixel Mineral Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Size Of Material: 1cm - 8cm
Capacity: 8 - 15 T/h
Ejector Quantity: 96
Camera Quantity: 5400 Pixel
Air Pressure: 0.4 - 0.6 (Mpa)
Auto Dust Cleaning: Obend
Weight: 3100 KG
Light Source: Osram
Product Description

Automatic Remove Dust System Remote Control System Raw Minerals Color Sorter

 superiorities of  Coreprogram


1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information of trichromatic of red, green and blue, with complementary stepless dimming, it can also identify impurities in depth, and has a strong ability to identify color differences.

2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with the core software system independently designed by Coreprogram, to recognise color and shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds of miscellaneous materials.

3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the sorting of more than a thousand colors, and selects the color of miscellaneous by identifying subtle changes in colors.

4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and light objects on the glass in front of the lens.


5. Simple Operation, Easy to Learn And Use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.


6. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts the unique mag-lev technology , so that the spray valve is matched with the equipment, the service life is increased by 5 times, and the air consumption is reduced by 20%.

7. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.


8. Excellent after-sales service
Big data + cloud interconnection, realizing 24-hour online support by engineers


Sorting Case :


Automatic Remove Dust System Remote Control System raw Minerals  Color Sorter 0                            Automatic Remove Dust System Remote Control System raw Minerals  Color Sorter 1                            Automatic Remove Dust System Remote Control System raw Minerals  Color Sorter 2


1. How about after-sale services overseas?

    After-sale services are available to  overseas customers. Internet + mobile app, making the
    operation and maintenance more convenient and easy.

2. How to use the machine?

    We will provide the customers with the installation drawing and let our engineer assist with you
    if needed.

3. How could I believe that the machine will be workable for my materials?

    Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
    material (which you want to  accept) ,bad material (which is you want to reject). we send the
    sorting video to you or make video call .

4. What is the warranty period?

    We provide a one-year whole-machine warantty. And we supply the spare parts at our
     purchasing price.

5. Will you accept L/C as payment?

     Both L/C and T/T are OK .

6. Do you have any other spare parts for us?

    Yes,we will supply you some basic spare parts .

7. Which machine will work together with our sorting machine that you can supply ?

    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
