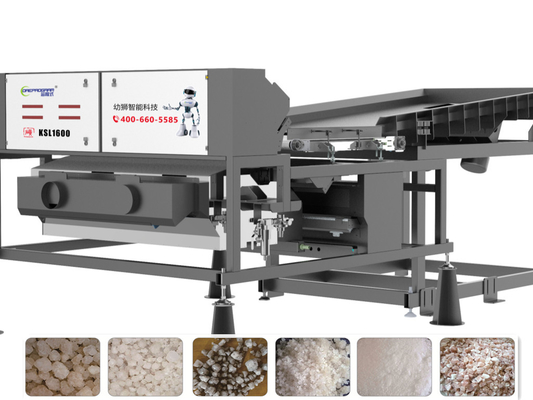

Single Layer 3 - 8 Cm Crude Salt Color Sorter With FPGA Processor
1 set
Single Layer 3 - 8 Cm Crude Salt Color Sorter With FPGA Processor
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: KSL-1600
High Light:

Single Layer Color Sorter


Crude Salt Color Sorter


FPGA Processor Color Sorter

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Output(t/h): 20 - 50
Size Of Material: 3 - 8 (cm)
Voltage: 220 / 50 (V/Hz)
Weight (Kg): 1600
Carryover Rate: >10:1
Light Source: LED
Air Pressure: 0.6 - 0.85 (Mpa)
Power: 6.5
Product Description

FPGA Processor High Capacity Single Layer 3 - 8 Cm Crude Salt Color Sorter

Main Features:

1. High-resolution CCD Image Acquisition Sensor System
With 5400-pixel high-resolution full-color CCD system to obtain the combined information of trichromatic of red, green and blue, with complementary stepless dimming, it can also identify impurities in depth, and has a strong ability to identify color differences.

2. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with the core software system independently designed by Coreprogram, to recognise color and shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds of miscellaneous materials.

3. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the sorting of more than a thousand colors, and selects the color of miscellaneous by identifying subtle changes in colors.

4. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and light objects on the glass in front of the lens.


5. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface, making color selection simpler and smarter, reducing manual errors, and providing powerful learning capabilities.

6. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts the unique mag-lev technology , so that the spray valve is matched with the equipment, the service life is increased by 5 times, and the air consumption is reduced by 20%.

7. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.


Sorting Case :


1. How about after-sale services overseas?

    After-sale services are available to overseas customers for training and installation.

    Internet + mobile app, making the operation and maintenance more convenient and


2. How to use the machine?

    We will provide the customers with the installation drawing and let our engineer to

    assist with you if needed.

3. How could I believe that the machine will be workable for my materials?

    Sample sent for testing is welcomed. Or you send us three photos,the raw material,

    the good material (which is you want to accept) ,bad material (which is you want to reject).

    We send the sorting video to you or make video call with you.

4. What is the warranty period?

    We provide a one-year whole-machine warantty. And we supply the spare parts at our

    purchasing price.

5. Will you accept L/C as payment?

    Both L/C and T/T are OK .

6. Do you have any other spare parts for us?

    Yes,we will supply you some basic spare parts .

7. Which machine will work together with our sorting machine that you can supply ?

    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.

8. What's the capacity ?

    The capacity in the table is a little different due to different impurities ratio . So we

    generally provide a capacity range.
