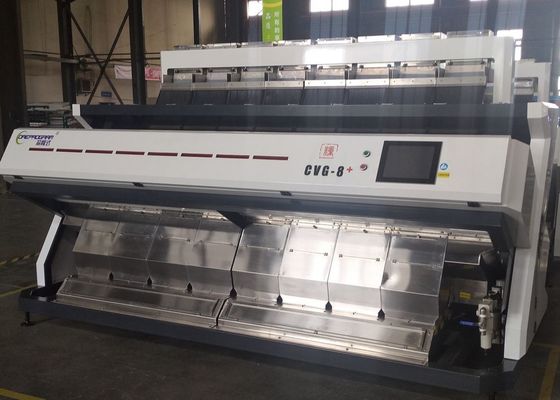

Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera
1 set
Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVG-6
High Light:

Multipurpose Wheat Color Sorter


384 Channels Wheat Color Sorter


sorter Colour Sorter

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Channels Number: 384
Size(l*w*h) Mm: 2955*2077*1795
Weight(Kg): 1752
Material: Metalic
Color: White
Software: Microsoft
Structure: Waterfall
Transport Package: Wooden Case
Product Description

Multipurpose RGB Full Color Camera Trichromatic Grain Barley Color Sorter

Product Superiority :
1. Brand new photoelectric design LED light source, low power, low heat; the light source and the
    sorting box are set independently to reduce the interference of dust on the material sorting .
2. Unique bottom exhaust dust removal system, good dust removal effect, stable performancein
    dusty environment .
3. Compatible with infrared expansion module . Infrared can be selected to realize diversified
    functions such as sorting of peanuts, shellless pumpkin seeds and raisins, foreign materials .
4. Measures are taken for splashing granules in the product streams, and the product provides
    the most efficient and stable flow.
5. The fourth-generation FPGA processor technology provides excellent processing speed and
     massive data efficiency.
6. Faster and easier to use with new touch panel and software .
7. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
    with top dust extraction equipment.
8. The automatic background adjustment function, open frame and special unloading system
    facilitates make it easy for installation, operation and general maintenance of the machine.
9. The model is equipped with a new generation of lenses and camera. It captures the HD images
    for high accuracy and has high level ability to detect the defects.

Technical Parameters:

Model Capacity
Optimized Carryover
Sorting Accuracy





XCS80 0.8-1.2 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 3-5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 3.5-6 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 3.5-8 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 4-9 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 5-12 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 6-13 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic:

                 Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera 0
           From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11).

Sorting  Case :

                                              Example Of Barley Sorting

          Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera 1

                       Accepted  Barley                                       Rejected Barley

          Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera 2        Multipurpose Wheat Color Sorter 384 Channels With RGB Full Color Camera 3

                            Accepted Barley                                       Rejected Barley

Our Service:

• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
