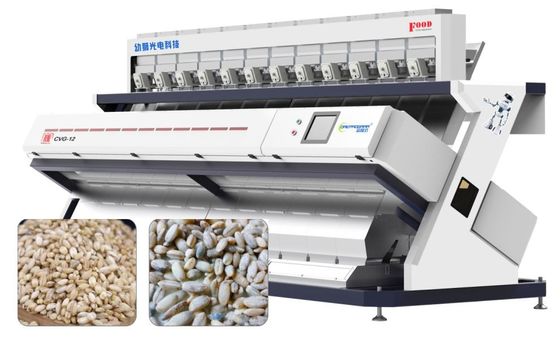

12 Chutes High Capacity Intelligent Recognition Highland Barley Color Sorter
Main Features:
1. Professional R & D Team
Self-developed image deep learning algorithm system + multi-spectral sorting technology.
2. Advanced Product Equipment
Original high-frequency and high-sensitivity solenoid valve + adaptive removal technology.
3. Excellent After-sales Service
Big data + cloud interconnection, realizing 24-hour online support by engineers.
4. Light Source Processing System
Unique trichromatic light free switching background board, light source can be flexibly
switched at will, suitable for choosing different particles and flake materials
5. Friendly UI
Intelligent operating platform, easy to learn , easy to operate, truly realize man-machine
dialogue, intelligent connection, and worry-free
6. Image Acquisition and Processing System
International high-end 2048 full-color line scan technology, DSP/FPGA international
cutting-edge processing technology, color and shape combination, multiple modes of
intelligent and complex algorithms, 10,000 kinds of materials can be selected at will.
7. Reliable Dust Cleaning System
High-speed airflow generated by the fan blows quickly to remove dust and light objects
on the front glass of the lens to ensure resolution and color selection accuracy.
8. Double Vision Lens
Rejected materials in all directions can be effectively identified in both top and bottom
view , ensuring that the accuracy of one-time selection reaches more than 99%.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3.5-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we
generally provide a capacity range.
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
