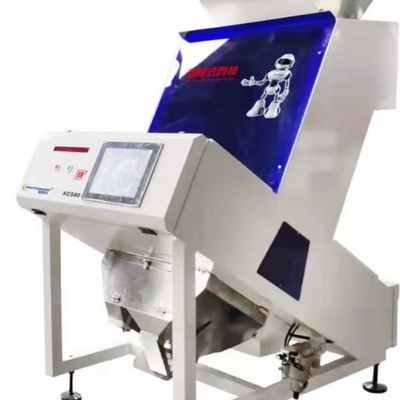

967*1553*1784 High Accuracy > 99% 1.2 - 3 t/h Home version small color sorter
Product Superiority :
1. High-resolution CCD Image Acquisition Sensor System With 5400-pixel high-resolution full-color CCD system to obtain the combined information of trichromatic of red, green and blue, with complementary stepless dimming, it can also identify impurities in depth, and has a strong ability to identify color differences.
2. High-speed Data Processing Software Real-time display of images, using high-speed parallel data processing chips, combined with the core software system independently designed by Coreprogram, to recognise color and shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds of miscellaneous materials.
3. intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 15 billion times .
4. Internet + mobile app, making the operation and maintenance more convenient and easy .
5. The automatic background adjustment function, open frame and special unloading system facilitates make it easy for installation, operation and general maintenance of the machine.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.5 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic
Sorting Case :
