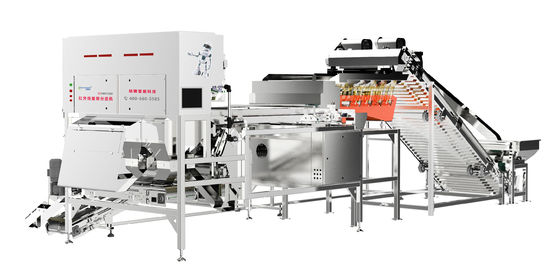

64 Ejectors 1.5 - 3.5 T/H Low Consumption And High Efficiency Nuts Fruit Color Sorter
Product Advantages :
1. Lower damage ratio by Belt-type structure design
Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that the damage ratio is much lower than that of traditional chute-type color sorter.
2.Full Color CCD Camera
Coreprogram vision system converts the captured pictures into signals through CCD camera, and then transmits the signals to a dedicated image processing system.
3. High Quality Solenoid Valve(ejector)
The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times/s,which guarantees the accurate and perfect ejecting performance .
4. High-speed Data Processing Software
Real-time display of images, using high-speed parallel data processing chips, combined with the core software system independently designed by Coreprogram, to recognise color and shape, combined with multiple modes of intelligent and complex algorithms, to sort all kinds of miscellaneous materials.
5. Environmental protection
The continuous work of wet sorting avoids the dust problem encountered by dry sorting, and fully meets the national environmental protection requirements
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.5-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take peanuts with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to
assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to
reject). We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio.We
generally provide a capacity range.
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
