Infrared Walnuts Sorting Machine 8.3Kw Precise Target Positioning 220V 50Hz
1 set
MOQ
Negotiable
Price
Infrared Walnuts Sorting Machine 8.3Kw Precise Target Positioning 220V 50Hz
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVG-12
High Light:

8.3Kw Walnuts Sorting Machine

,

220V Walnuts Sorting Machine

,

Infrared Walnuts Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Specifications
Structure: Waterfall
HS CODE: 84371010
Power(Kw): 8.3
Dimension(mm): 4993*2077*1795
Weight(kg): 2960
Processor: Altera
Filter: SMC
Software: Microsoft
Product Description

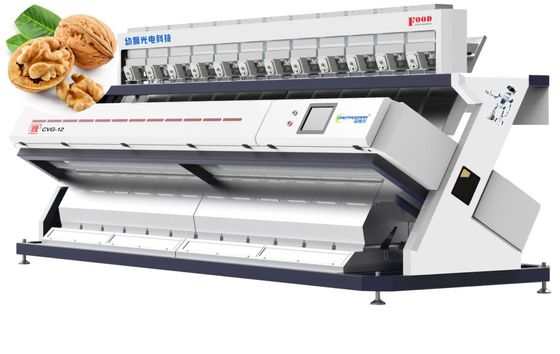

High Capacity Precise Target Positioning Infrared Walnuts Color Sorter
Advantages Of Coreprogram Color Sorter :
1. With the new infrared technology, the machine targeting the nuts industry makes the crust
    and internal separation perfect.
2. Measures are taken for splashing granules in the product streams, and the product provides
    the most efficient and stable flow.
3. The fourth-generation FPGA processor technology provides excellent processing speed and
    massive data efficiency.
4. Faster and easier to use with new touch panel and software .
5. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
    with top dust extraction equipment.
6. The automatic background adjustment function, open frame and special unloading system
    facilitates make it easy for installation, operation and general maintenance of the machine.
7. The model is equipped with a new generation of lenses and camera. It captures the HD
    images for high accuracy and has high level ability to detect the defects.

Technical Parameters:

Model Capacity
(t/h)
Optimized Carryover
(bad:good)
Sorting Accuracy
(%)
Power
(Kw)
Voltage
(V/Hz)

Dimension

L×W×H(mm)

Weight

(kg)

XCS80 0.6-1.2 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 3-5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 3-6 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 3.5-7.5 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 4-8.5 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 5-11 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 6-13 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
         will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

Infrared Walnuts Sorting Machine 8.3Kw Precise Target Positioning 220V 50Hz 0

    From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole  . The accepted materials will come out from the accepted hole .

Sorting Case :
                                          Example of Walnuts Sorting
Infrared Walnuts Sorting Machine 8.3Kw Precise Target Positioning 220V 50Hz 1
      Accepted                           Rejected                     Rejected                      Rejected

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.

FAQ:
1. How about after-sale services overseas?
    After-sale services are available to overseas customers for training and installation.
    Internet + mobile app, making the operation and maintenance more convenient and
    easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to
    assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material,
    the good material (which is you want to accept) ,bad material (which is you want to reject).
    We send the sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
     purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
