High Definition Camera Garlic Granules Grain Sorting Machine Color Sorter
Advantages Of Coreprogram :
1. Coreprogram Color Sorter is committed to developing advanced core technology ,We provide
you with quality machines and excellent services.
2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet
fine classification requirements and get good shape selection and color selection.
3. Online Engineering service is always available while providing installation and after-sale service
locally in all countries.
4. Intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption
and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system
ensures low maintenance cost and long lifetime over 15 billion times.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.3-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.4-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 0.6-1.0 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 1.0-1.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 1.5-2.0 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 1.3-1.8 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 2.0-2.5 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take dehydrated carrots with 5% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above will vary
to some extent ,which are references for you choosing a suitable model.
Sorting Case:

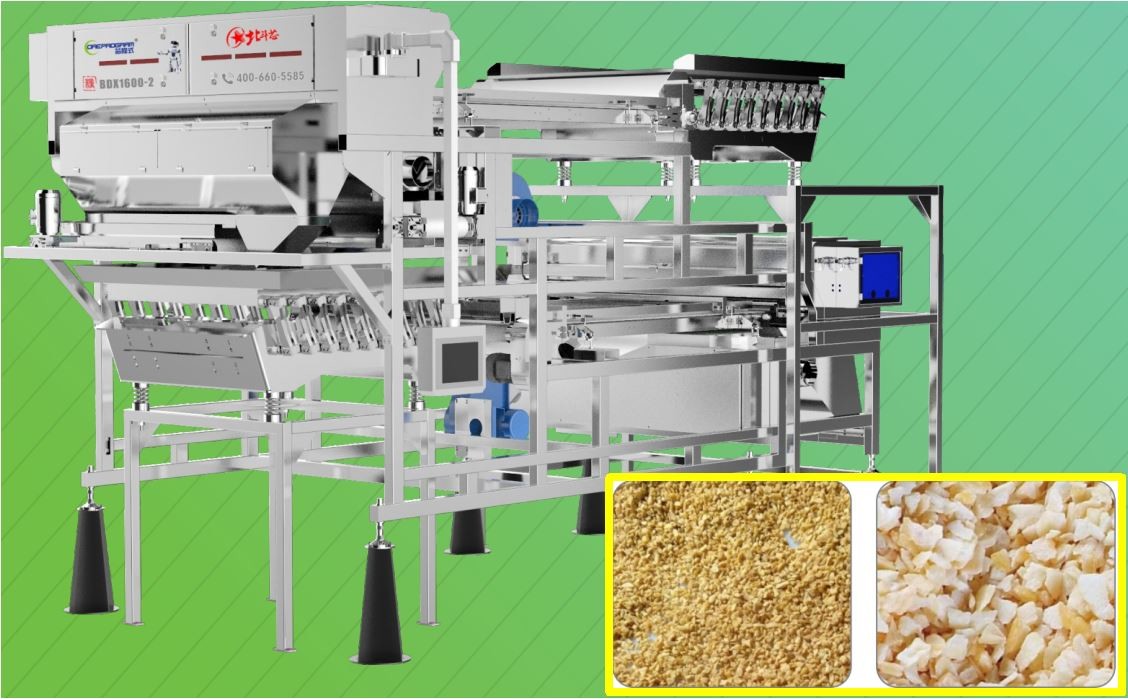

Example Of Garlic Granules Sorting
Packaging & shipping :
Delivery Time :15 working days after payment
Packaging: dedicated wooden box
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers. Internet + mobile app, making the
operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the
good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
8. What's the capacity ?
The capacity above is a little different due to different impurities ratio .
Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
